Advantech Fanless Intelligent Systems: Get the Job Done, Efficiently

ATOM Family Product Offering

€413

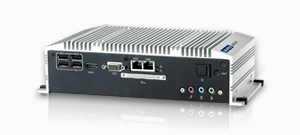

ARK-2120L

Intel® Atom™ N2600/D2550 High Value Fanless Embedded Box PC with Multiple I/Os

DDR3 memory supports up to 4 GB

VGA and HDMI dual independent display

Mini PCIe expansion with SIM holder for communication module, i.e. HSDPA, WLAN

Supports up to 2 x GbE, 6 x USB 2.0 and 4 x COMs

Supports external CFast socket and 1 x 2.5" HDD drive bay

Lockable DC input jack

IP40

Product Page

€453

ARK-1503F

Intel® Atom™ D525/D425 Fanless Embedded IPC Integrated Display Interface

Supports integrated LVDS interface, with LVDS / 2*USB / Rx / Tx signal (compliant with ITM-5115)

Supports 1 x RS-232, 1 x RS-232/422/485 with Auto-flow control

Built-in 1 x Mini PCIe expansion slot for communication module

Supports external CF socket

Supports 2.5" SATA HDD

DC 12V power input

IP40

Product Page

€305

ARK-1120L

Ultra Slim and Price Competitive Intel® Atom™ N455 Embedded Box PC

Support VGA, USB, COM and Ethernet

Palm-size design: 133.8 x 43.1 x 94.2 mm

Supports 2.5" SATA HDD

Low-power-consumption, total power consumption < 10W

One half mini-PCIe socket expansion

Fanless construction with VESA mount

IP40

Product Page

Application Story

Advantech ARK-2120 is highly suited for such outdoor self-service applications because of its ultra-ruggedness, wide temperature range, rich I/O options, low power consumption and remote maintenance features. >more

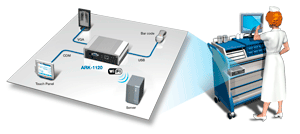

The application of this palm-sized ARK-1120 can alleviate nurses’ burden, and save space and power at the same time. >more

Reliable Platforms, Advanced Design

Advantech is contributing to this development with new design concepts for various aspects of the products, and aims to give developers convenient, simplified and trusted solutions for embedded applications.
